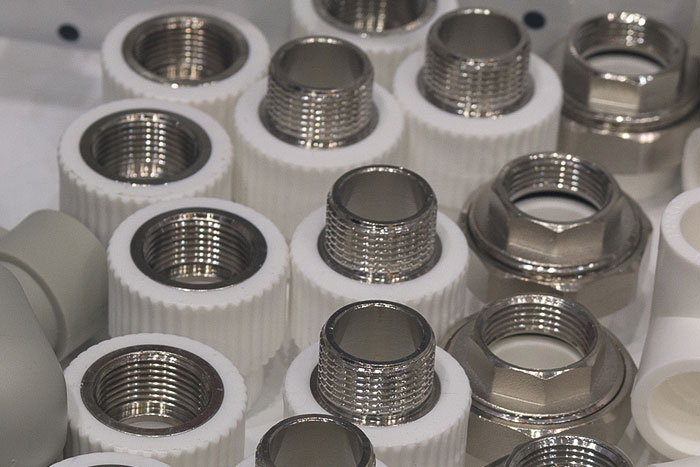

Insert molding is a widely adopted manufacturing technique in the plastics industry that allows for the integration of various materials into a single, cohesive part. By inserting a preformed part—often made of metal, though sometimes plastic or other materials—into a mold before injecting molten plastic around it, this process creates components that are stronger, more durable, and often more cost-effective than their traditionally assembled counterparts. This technique is especially prevalent in industries that require high-performance parts, such as automotive, medical devices, electronics, and consumer goods. By combining different materials into one component, insert molding opens up new possibilities for innovation and efficiency, offering manufacturers the chance to design parts that are lighter, yet maintain high levels of strength and functionality. Throughout this guide, we’ll delve into the details of insert molding, exploring its advantages, practical applications, and how it fits into the broader spectrum of manufacturing processes. We’ll also look closely at terms like insert injection molding, insert mold, insert plastic molding, and insert molding injection, clarifying how these concepts interrelate and what they mean for modern manufacturing.
What is Insert Molding?
Insert molding represents a specialized branch of injection molding where a pre-manufactured part—often metallic, but occasionally ceramic or another plastic—is strategically placed inside a mold cavity before the plastic injection process begins. When the molten plastic is injected into the mold, it flows around the insert, encapsulating it completely and creating a robust mechanical bond between the two materials. This integration is not merely superficial; it creates a component that benefits from the combined properties of both materials, such as the conductivity of metal and the flexibility of plastic. Insert molding is crucial in producing complex parts that need to withstand high stress or require a combination of properties that a single material cannot provide. For example, it’s common in the automotive industry, where metal inserts are molded within plastic parts to provide the necessary strength without the added weight of a full metal part. By reducing the need for post-production assembly and minimizing the potential for assembly errors, insert molding also streamlines manufacturing processes, making it a preferred method in many high-volume production environments.
The Insert Injection Molding Process
Step 1: Designing the Insert Mold
The foundation of successful insert molding lies in meticulous mold design. A well-designed mold ensures that the insert is securely held in place during the injection process and that the molten plastic flows evenly around it, preventing issues like voids or incomplete fills. Engineers must consider the properties of both the plastic and the insert material, taking into account factors such as thermal expansion, cooling rates, and bonding characteristics. For example, metals expand and contract differently than plastics under heat, so the mold must accommodate these variations to avoid stress and deformation in the final part. Advanced computer-aided design (CAD) tools and simulations are often employed to predict and mitigate potential challenges, optimizing mold geometry, cooling channel placement, and gating systems to achieve the best possible outcome.
Step 2: Placing the Insert
Once the mold is prepared, the insert must be accurately positioned within the mold cavity. This can be a manual process, where an operator places each insert before the mold closes, or it can be automated, using robotic arms to speed up production and ensure consistency. Automation is particularly beneficial in high-volume production, where even slight variances in placement can lead to defects or decreased product quality. The positioning must be precise; if the insert shifts during injection, it can lead to weak spots or misalignments that compromise the part’s integrity. The method of holding the insert in place varies depending on the insert’s shape and material, often using magnetic or mechanical means to secure it firmly throughout the process.
Step 3: Injecting the Plastic
With the insert securely positioned, molten plastic is injected into the mold at high pressure, typically ranging from 10,000 to 30,000 psi. The plastic fills the cavity, enveloping the insert entirely and conforming to the mold’s shape. The pressure and temperature must be carefully controlled to ensure the plastic flows smoothly around the insert without displacing it. Different plastics have unique flow properties; for example, thermoplastics like polypropylene offer good flow characteristics, making them suitable for intricate designs. The choice of plastic also impacts the bonding strength with the insert material—certain plastics form better bonds with specific metals, which can be enhanced with surface treatments or coatings on the insert to improve adhesion.
Step 4: Cooling and Solidification
After the mold cavity is filled, the part must cool and solidify before it can be safely ejected. The cooling phase is a critical part of the insert molding process, as it directly affects the dimensional accuracy and mechanical properties of the finished product. During cooling, the plastic contracts slightly, and this shrinkage must be anticipated in the mold design to ensure the final dimensions are correct. Cooling times vary based on material type, part thickness, and mold design, but typically range from a few seconds to several minutes. Efficient cooling systems, often involving water channels within the mold, help maintain consistent temperatures and reduce cycle times, enhancing productivity.
Step 5: Ejecting the Part
Once cooled, the mold opens, and ejector pins or other mechanisms push the completed part out of the cavity. The encapsulated insert is now a permanent part of the plastic structure, resulting in a unified component that combines the best properties of both materials. After ejection, parts might undergo further processing—such as trimming excess plastic, conducting quality inspections, or applying additional coatings—to ensure they meet the desired specifications and performance standards. This step is crucial for maintaining high-quality standards, especially in industries like automotive or medical, where failure is not an option.
Advantages of Insert Molding
Cost Efficiency
One of the most compelling benefits of insert plastic molding is its potential for cost savings. By integrating the insert directly into the molding process, manufacturers can eliminate secondary operations like drilling, tapping, or adhesive bonding. This streamlined approach not only reduces labor costs but also minimizes the risk of errors associated with manual assembly. Furthermore, the ability to combine multiple functions into a single part reduces the overall part count in assemblies, leading to simpler, more cost-effective designs. This efficiency is particularly valuable in industries with tight margins or high-volume production needs, where even small savings per unit can add up significantly over time.
Improved Strength and Durability
By embedding metal or other inserts within plastic, manufacturers can create parts that are far stronger and more durable than those made solely from plastic. The metal insert reinforces the plastic, providing enhanced mechanical properties such as tensile strength and impact resistance. This makes insert molding ideal for applications that demand robust performance, like in the automotive sector, where parts must endure harsh conditions and heavy use. Moreover, the encapsulation process protects the insert from environmental factors like corrosion, extending the component’s lifespan and reliability.
Lightweight Design
Another significant advantage of insert molding is its ability to produce lightweight yet strong components. By strategically placing inserts, designers can achieve the necessary strength without the added weight of an all-metal part. This is especially crucial in industries like aerospace and automotive, where reducing weight translates directly into better fuel efficiency and performance. For example, an engine component might use a metal insert for added durability while the surrounding plastic reduces overall weight, contributing to a lighter, more efficient vehicle.
Enhanced Aesthetics and Ergonomics
Since the insert is encapsulated within the plastic, the final product often has a smoother, more visually appealing appearance. There are no visible fasteners or seams, giving the part a clean, finished look. This is particularly beneficial in consumer products, where aesthetics and ergonomics can significantly impact marketability. A power tool, for instance, might incorporate metal reinforcements within the plastic housing, providing both the necessary durability and an ergonomic grip without the distraction of visible metal parts.
Applications of Insert Molding
Automotive Industry
The automotive sector is one of the biggest beneficiaries of insert molding, using this technology to manufacture high-performance, lightweight, and durable components. Common applications include engine covers, sensor housings, interior paneling, and fasteners. Metal inserts within plastic parts help improve heat resistance, impact strength, and load-bearing capacity, making them ideal for components that must withstand mechanical stress and thermal fluctuations. Another major advantage is the weight reduction achieved by replacing bulky metal parts with plastic alternatives reinforced with metal inserts. This contributes to better fuel efficiency, a crucial factor in modern automotive design. Additionally, insert injection molding allows for the production of electrical connectors with integrated metal contacts, ensuring secure and long-lasting connections that are resistant to vibration and wear.
Medical Industry
Insert molding is widely used in the medical field due to its ability to create seamless, hygienic, and biocompatible components. Medical devices such as syringes, surgical instruments, diagnostic equipment, and implantable devices benefit from this technique because it allows metal or ceramic inserts to be fully encapsulated within a sterile plastic shell. Unlike traditional methods that require additional adhesive bonding or assembly, insert molding ensures a contamination-free production process. This is particularly important for medical applications, where maintaining sterility and structural integrity is critical to patient safety. The ability to mold intricate features, such as textured grips and ergonomic designs, further enhances the usability of medical devices.
Electronics and Electrical Components
Electrical and electronic components require precise manufacturing to ensure functionality, durability, and safety. Insert molding injection plays a key role in producing connectors, switches, sockets, and other components that incorporate metal contacts for conductivity while being insulated with plastic. The process guarantees that electrical components are securely bonded, minimizing the risk of failure due to loose connections. In addition, insert molding is often used in circuit board manufacturing, where plastic housings are molded around metal terminals to provide insulation and protection against environmental factors such as moisture, heat, and mechanical stress. The enhanced durability and precision of insert-molded electronic components make them highly reliable for industrial, automotive, and consumer applications.
Consumer Goods and Industrial Applications
Household appliances, tools, and industrial equipment benefit significantly from insert plastic molding. This process is commonly used to manufacture ergonomic grips on tools, fasteners for home appliances, and reinforced plastic parts for machinery. By integrating metal inserts within plastic casings, manufacturers can produce components that offer both strength and user-friendly aesthetics. For instance, power tools often have metal reinforcements within their plastic housings, improving impact resistance and extending product lifespan while keeping the overall weight manageable. Insert molding also allows for the production of complex geometries that would be difficult to achieve with traditional manufacturing methods, making it a preferred choice for high-end consumer goods.
Materials Used in Insert Molding
Selecting the right materials for insert molding is essential to achieving optimal performance and durability. The two primary materials used in the process are:
Plastic Materials
Various thermoplastics and thermosetting plastics are used in insert molding, depending on the application’s requirements. Some common choices include:
- Polypropylene (PP): Lightweight, flexible, and resistant to moisture, commonly used in medical and consumer goods.
- Acrylonitrile Butadiene Styrene (ABS): Durable and impact-resistant, ideal for automotive and electronic components.
- Nylon (PA): Strong and wear-resistant, commonly used for mechanical and industrial applications.
- Polycarbonate (PC): Highly durable and heat-resistant, often used in electronic and automotive applications.
- Polyethylene (PE): Offers good chemical resistance and flexibility, making it suitable for medical and industrial applications.
Insert Materials
The inserts used in insert injection molding can be made from a variety of materials, depending on the function and performance requirements of the final product. Common insert materials include:
- Stainless Steel: Offers corrosion resistance and strength, commonly used in medical and automotive applications.
- Brass: Provides excellent conductivity, making it suitable for electrical components.
- Aluminum: Lightweight and durable, often used in aerospace and consumer products.
- Copper: Used for electrical applications due to its high conductivity.
- Carbon Fiber Composites: Provides high strength-to-weight ratios, ideal for advanced industrial applications.
Insert Molding vs. Overmolding
While insert molding and overmolding share similarities, they are distinct processes that serve different purposes.
Insert Molding
Insert molding involves placing a pre-made insert, such as a metal or plastic part, into a mold before injecting molten plastic around it. This results in a single, integrated component with enhanced structural properties. Insert molding is typically used when combining different materials to improve strength, conductivity, or durability without the need for additional assembly steps.
Overmolding
Overmolding, on the other hand, is a two-step process where one material is molded over another to create a soft-touch or multi-material component. Unlike insert molding, overmolding is often used to enhance grip, improve aesthetics, or provide additional functionality, such as vibration dampening. Examples include rubberized handles on tools, soft-touch grips on consumer products, and shock-absorbing layers in electronic devices.
The Role of Insert Molding in Modern Manufacturing
Insert molding has transformed the way manufacturers approach product design and production. By combining multiple materials into a single part, manufacturers can achieve greater efficiency, reduce production costs, and create more durable products. In industries where precision and reliability are critical, insert molding has become a preferred choice over traditional assembly techniques.
Furthermore, advancements in automation have significantly improved the speed and accuracy of insert molding. Robotic systems can now place inserts with extreme precision, reducing the risk of defects and improving overall production efficiency. This is particularly beneficial in high-volume industries like automotive and electronics, where consistency is crucial.
Additionally, insert molding is becoming increasingly relevant in sustainable manufacturing. By optimizing material usage and reducing waste, this process aligns with the growing demand for eco-friendly production methods. Many manufacturers are now exploring ways to integrate biodegradable plastics and recycled materials into insert molding, contributing to a more sustainable future.
Future Trends in Insert Molding
The future of insert molding looks promising, with several key trends shaping the industry. One notable trend is the integration of smart materials and electronic components into insert-molded parts. For example, manufacturers are now embedding sensors and microchips into plastic casings to create advanced medical devices, wearable technology, and smart industrial equipment. This convergence of electronics and plastics opens up new possibilities for innovation in various fields.
Another emerging trend is the growing collaboration between insert molding and die casting China manufacturers. As global supply chains evolve, companies are increasingly looking for cost-effective solutions that combine the benefits of metal die casting with plastic insert molding. This hybrid approach enables the production of components that offer both the strength of metal and the versatility of plastic, catering to industries with demanding performance requirements.
Moreover, advances in material science are leading to the development of stronger, lighter, and more environmentally friendly plastics. High-performance polymers with enhanced mechanical and thermal properties are expanding the range of applications for insert molding, making it a viable alternative to traditional metal fabrication in many cases.
Conclusion
Insert molding has become a crucial technology in modern manufacturing, providing a seamless way to integrate metal, plastic, and other materials into a single, high-performance component. The process offers numerous advantages, including cost savings, improved durability, and design flexibility, making it an essential choice for industries ranging from automotive and medical to electronics and consumer goods. As technology advances and demand for lightweight, durable, and sustainable products continues to grow, insert molding will remain at the forefront of innovative manufacturing solutions.
